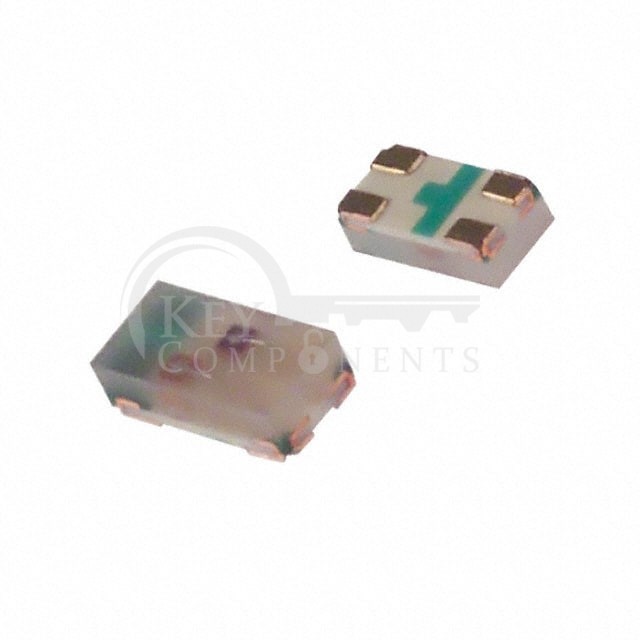

HSMF-C162
| Manufacturer Part | HSMF-C162 |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | LED AMBER/RED DIFFUSED 0603 SMD |
| Category | Optoelectronics |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Color: | Amber, Red |
| Configuration: | Independent |
| Lens Color: | White |
| Lens Transparency: | Diffused |
| Millicandela Rating: | 90mcd Amber, 90mcd Red |
| Lens Style: | Rectangle with Flat Top |
| Lens Size: | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ): | 1.9V Amber, 1.9V Red |
| Current - Test: | 20mA Amber, 20mA Red |
| Viewing Angle: | 120° |
| Mounting Type: | Surface Mount |
| Wavelength - Dominant: | 592nm Amber, 626nm Red |
| Wavelength - Peak: | 595nm Amber, 637nm Red |
| Features: | - |
| Package / Case: | 0603 (1608 Metric) |
| Supplier Device Package: | 0603 |
| Size / Dimension: | 1.60mm L x 0.80mm W |
| Height (Max): | 0.50mm |
