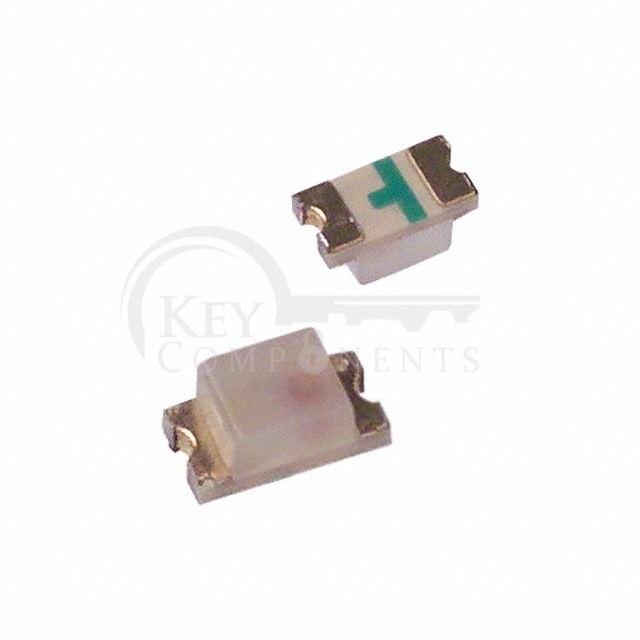

HSMA-C191
| Manufacturer Part | HSMA-C191 |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | LED AMBER DIFFUSED CHIP SMD |
| Category | Optoelectronics |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Color: | Amber |
| Configuration: | Standard |
| Lens Color: | White |
| Lens Transparency: | Diffused |
| Millicandela Rating: | 90mcd |
| Lens Style: | Rectangle with Flat Top |
| Lens Size: | 1.00mm x 1.60mm |
| Voltage - Forward (Vf) (Typ): | 1.9V |
| Current - Test: | 20mA |
| Viewing Angle: | 170° |
| Mounting Type: | Surface Mount |
| Wavelength - Dominant: | 592nm |
| Wavelength - Peak: | 595nm |
| Features: | - |
| Package / Case: | 0603 (1608 Metric) |
| Supplier Device Package: | Chip LED |
| Size / Dimension: | 1.60mm L x 0.80mm W |
| Height (Max): | 0.60mm |
