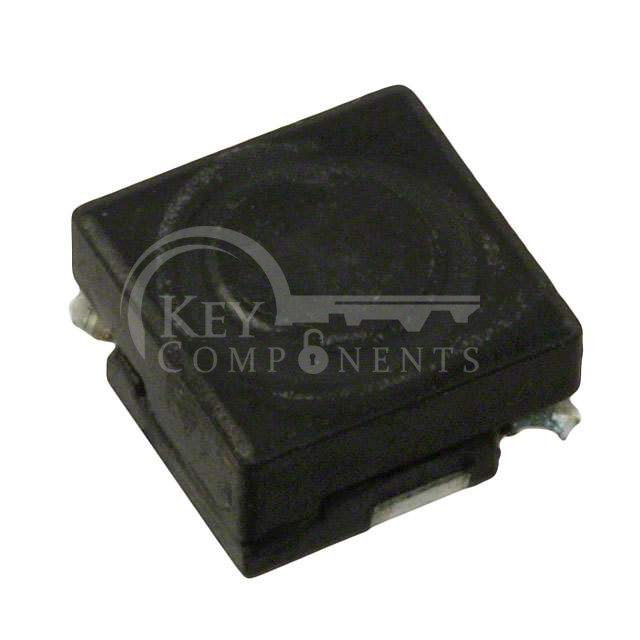

SRR0603-4R7ML

Type	Description
Product Status:	Active
Type:	Drum Core, Wirewound
Material - Core:	Ferrite
Inductance:	4.7 µH
Tolerance:	±20%
Current Rating (Amps):	1.6 A
Current - Saturation (Isat):	2.2A
Shielding:	Shielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	13 @ 7.96MHz
Frequency - Self Resonant:	45MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, Corner Terminals
Supplier Device Package:	-
Size / Dimension:	0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max):	0.130" (3.30mm)

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
