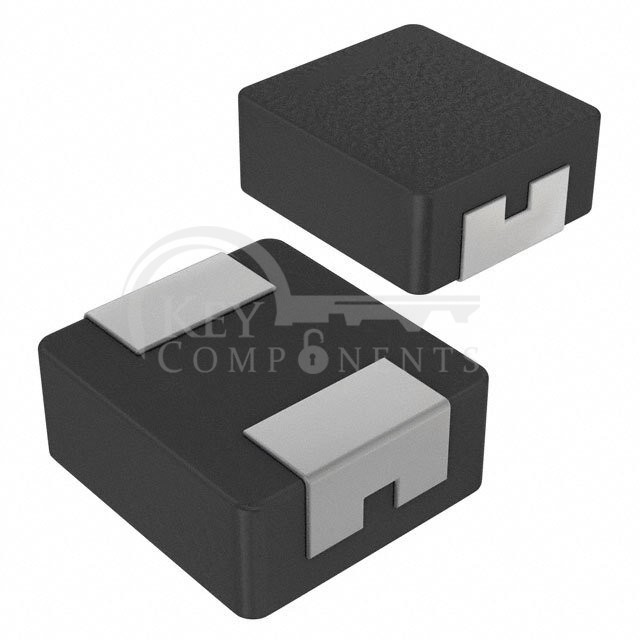

SRP4020TA-R56M
| Manufacturer Part | SRP4020TA-R56M |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 560NH 7.3A 16 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Carbonyl Powder |
| Inductance: | 560 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 7.3 A |
| Current - Saturation (Isat): | 10A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 16mOhm Max |
| Q @ Freq: | 10 @ 100kHz |
| Frequency - Self Resonant: | 105MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 150°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2-SMD |
| Supplier Device Package: | 2-SMD |
| Size / Dimension: | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max): | 0.079" (2.00mm) |
