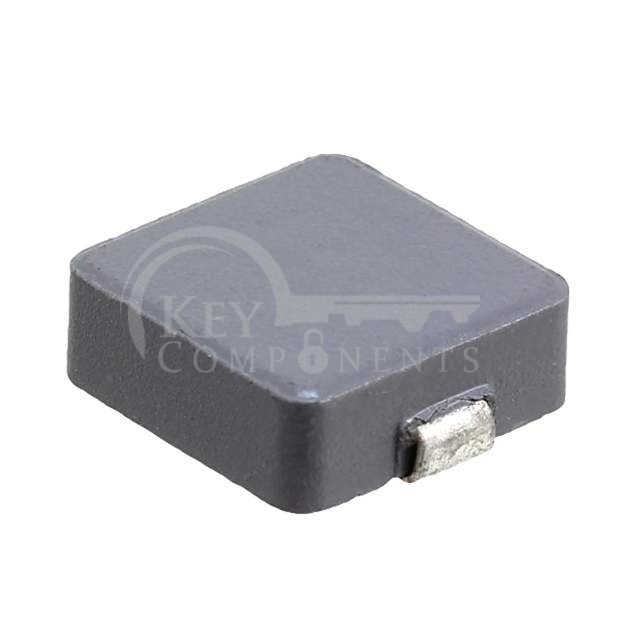

SRP1038A-5R6M
| Manufacturer Part | SRP1038A-5R6M |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 5.6UH 9A 19.3 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Carbonyl Powder |
| Inductance: | 5.6 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 9 A |
| Current - Saturation (Isat): | 14A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 19.3mOhm Max |
| Q @ Freq: | 20 @ 100kHz |
| Frequency - Self Resonant: | 15MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 150°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max): | 0.157" (4.00mm) |
