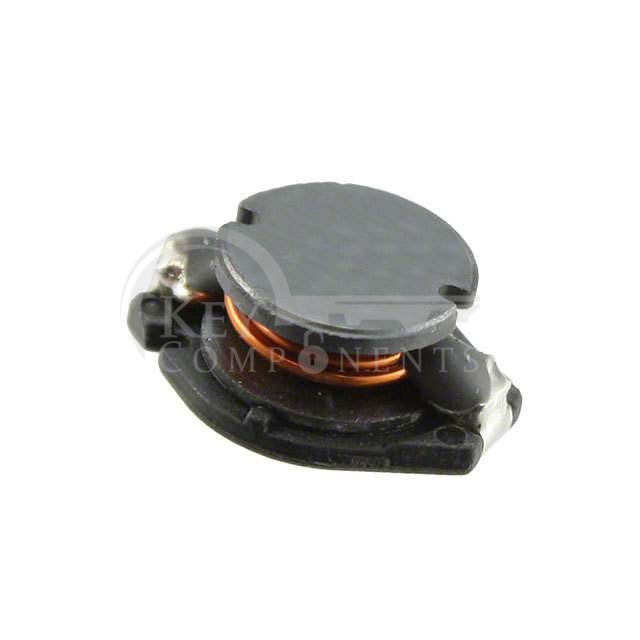

SDR1005-222KL
| Manufacturer Part | SDR1005-222KL |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 2.2MH 200MA 8.2OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 2.2 mH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 200 mA |
| Current - Saturation (Isat): | 240mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 8.2Ohm Max |
| Q @ Freq: | 85 @ 128kHz |
| Frequency - Self Resonant: | 2MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 1 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
