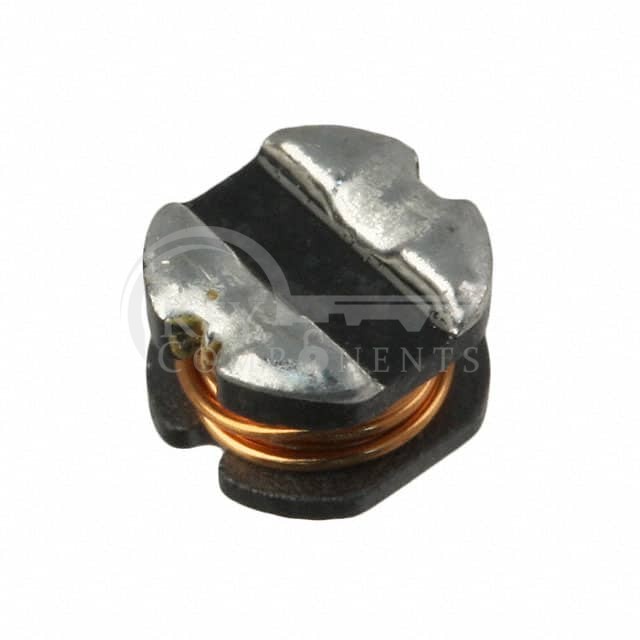

SDR0403-220ML
| Manufacturer Part | SDR0403-220ML |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 22UH 760MA 380MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 760 mA |
| Current - Saturation (Isat): | 1.2A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 380mOhm Max |
| Q @ Freq: | 25 @ 2.52MHz |
| Frequency - Self Resonant: | 20MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 1 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max): | 0.138" (3.50mm) |
