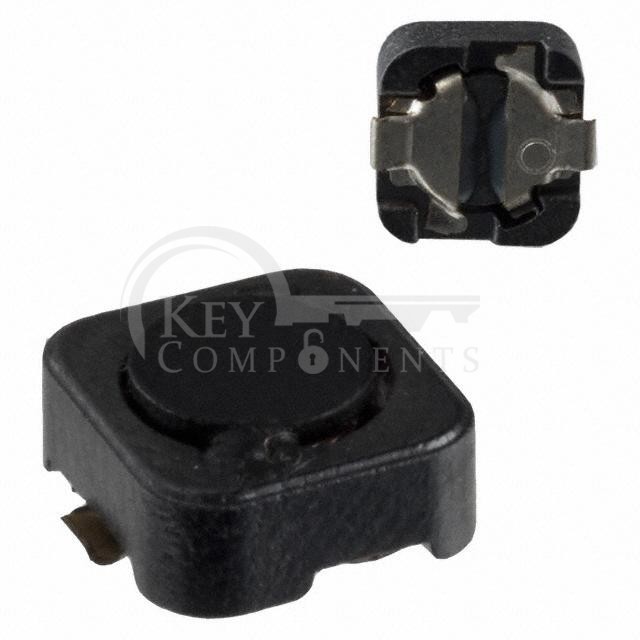

SPD62R-563M
| Manufacturer Part | SPD62R-563M |
|---|---|
| Manufacturer | API Delevan Inc. |
| Description | FIXED IND 56UH 680MA 850MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 56 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 680 mA |
| Current - Saturation (Isat): | 680mA |
| Shielding: | Shielded |
| DC Resistance (DCR): | 850mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 1 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.260" L x 0.244" W (6.60mm x 6.20mm) |
| Height - Seated (Max): | 0.118" (3.00mm) |
