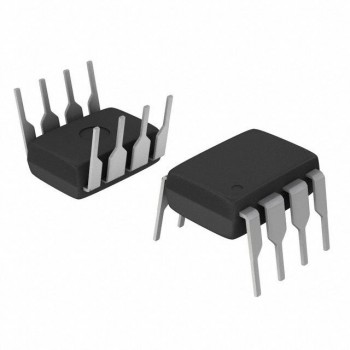

AD820ANZ
| Manufacturer Part | AD820ANZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC OPAMP JFET 1 CIRCUIT 8DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Amplifier Type: | J-FET |
| Number of Circuits: | 1 |
| Output Type: | Rail-to-Rail |
| Slew Rate: | 3V/µs |
| Gain Bandwidth Product: | 1.8 MHz |
| -3db Bandwidth: | 1.9 MHz |
| Current - Input Bias: | 2 pA |
| Voltage - Input Offset: | 400 µV |
| Current - Supply: | 700µA |
| Current - Output / Channel: | 20 mA |
| Voltage - Supply Span (Min): | 5 V |
| Voltage - Supply Span (Max): | 36 V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Through Hole |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-PDIP |
