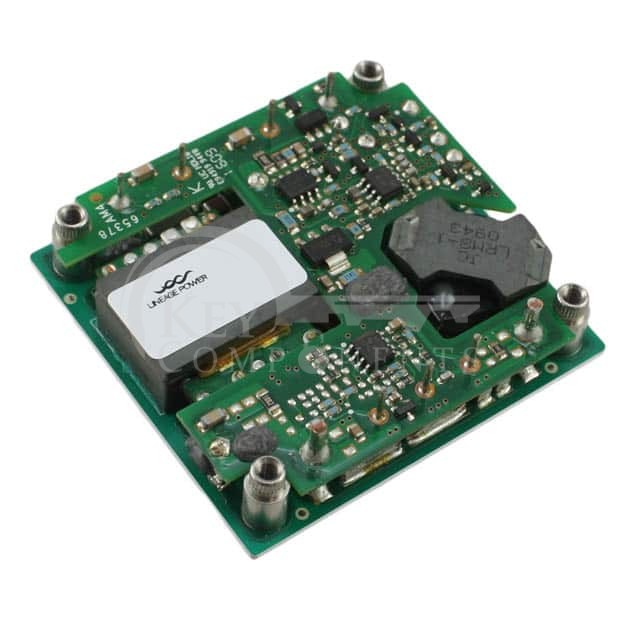

JAHW075F1
| Manufacturer Part | JAHW075F1 |
|---|---|
| Manufacturer | ABB Power Electronics Inc. |
| Description | DC DC CONVERTER 3.3V 50W |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Isolated Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 36V |
| Voltage - Input (Max): | 75V |
| Voltage - Output 1: | 3.3V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 15A |
| Power (Watts): | 50 W |
| Voltage - Isolation: | 1.5 kV |
| Applications: | ITE (Commercial) |
| Features: | Remote On/Off, OCP, OTP, OVP |
| Operating Temperature: | -40°C ~ 100°C |
| Efficiency: | 88.4% |
| Mounting Type: | Through Hole |
| Package / Case: | 9-DIP Module |
| Size / Dimension: | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package: | - |
| Control Features: | Enable, Active Low |
| Approval Agency: | - |
| Standard Number: | - |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
